AEM Fluid Temperature Sensor 1/8" NPT w/DTM Plug, Pins & Pin Lock 30-2013

AEM offers 1/8" NPT DTM-Style Connector (PN 30-2013), 1/8" NPT (PN 30-2012) and 3/8" NPT (PN 30-2011) water/oil temperature sensor kits. Find the specifications of our fluid temperature sensors below.

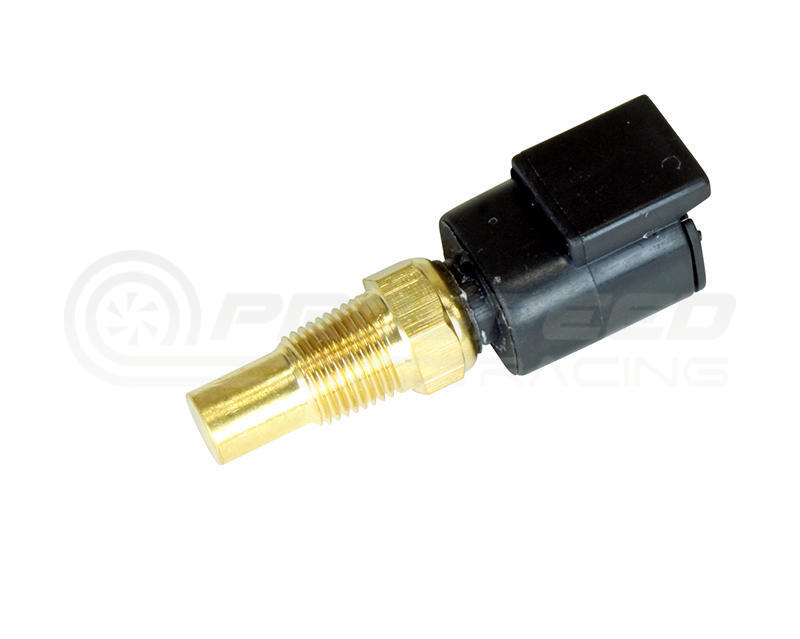

30-2013: Temperature Sensor with 1/8" NPT Male Thread, High Performance DTM-Style Connector, Aluminum Bung, Connector & Pins


• Accuracy: < 1.5 °C / 2.7 °F
• Operating Temp: -20C to 150C / -4F to 302F
• Resistive Range (Ω): See Instructions
• Dissipation Constant: 12 mW/ °C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
• Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
• Sensor Body Material: Brass
• Thread: 1/8" NPT
• Hex Size: 1/2"
• Installation Torque: 13.5Nm / 10 ft-lbs
• Weight: 10g
• Electrical Termination: Weatherproof High Performance DTM-Style connector. Includes Mating Connector, Pins & Wire Seals

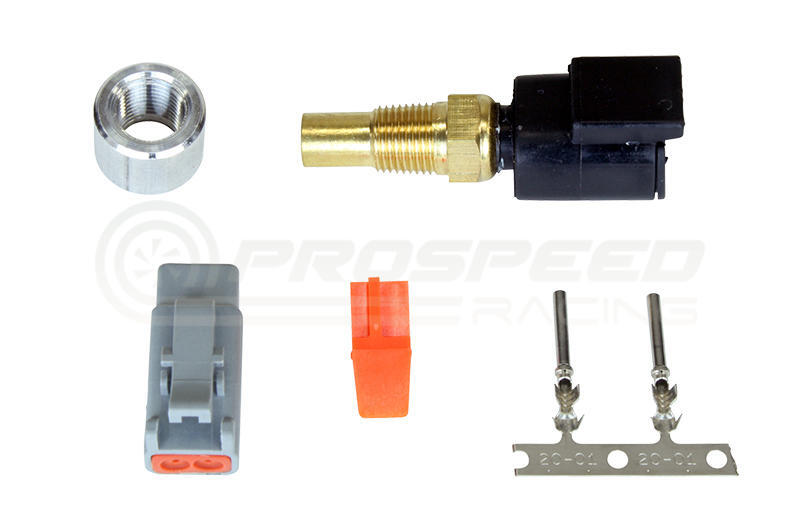

• Includes: Water Temp Sensor High Performance DTM-Style, 1/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
