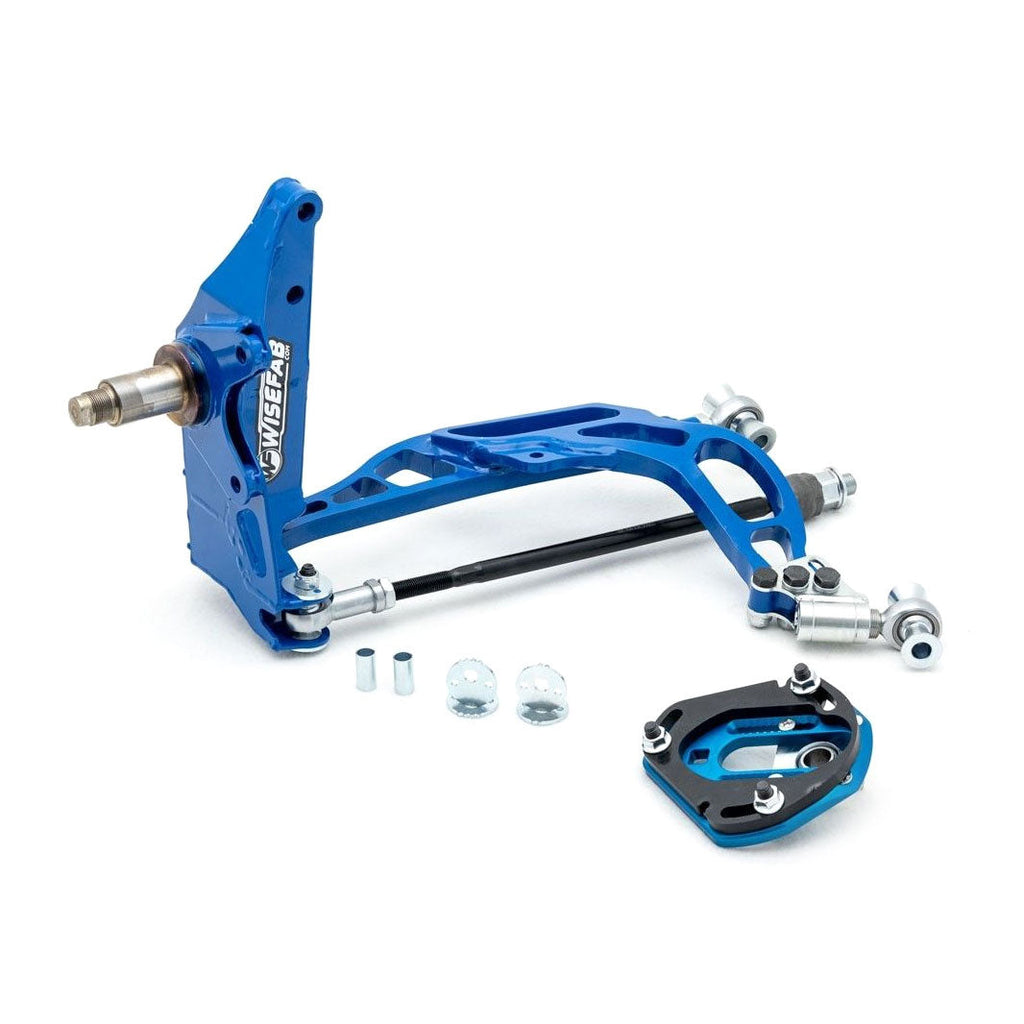

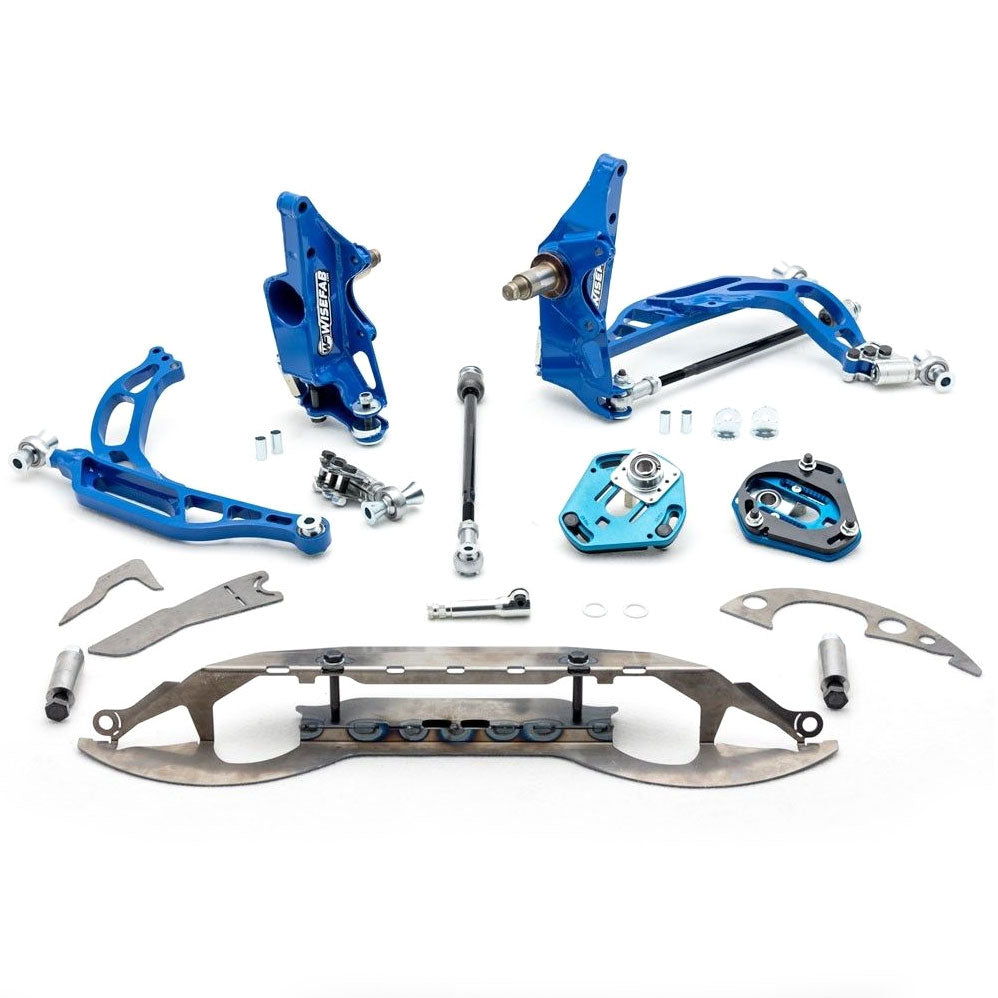

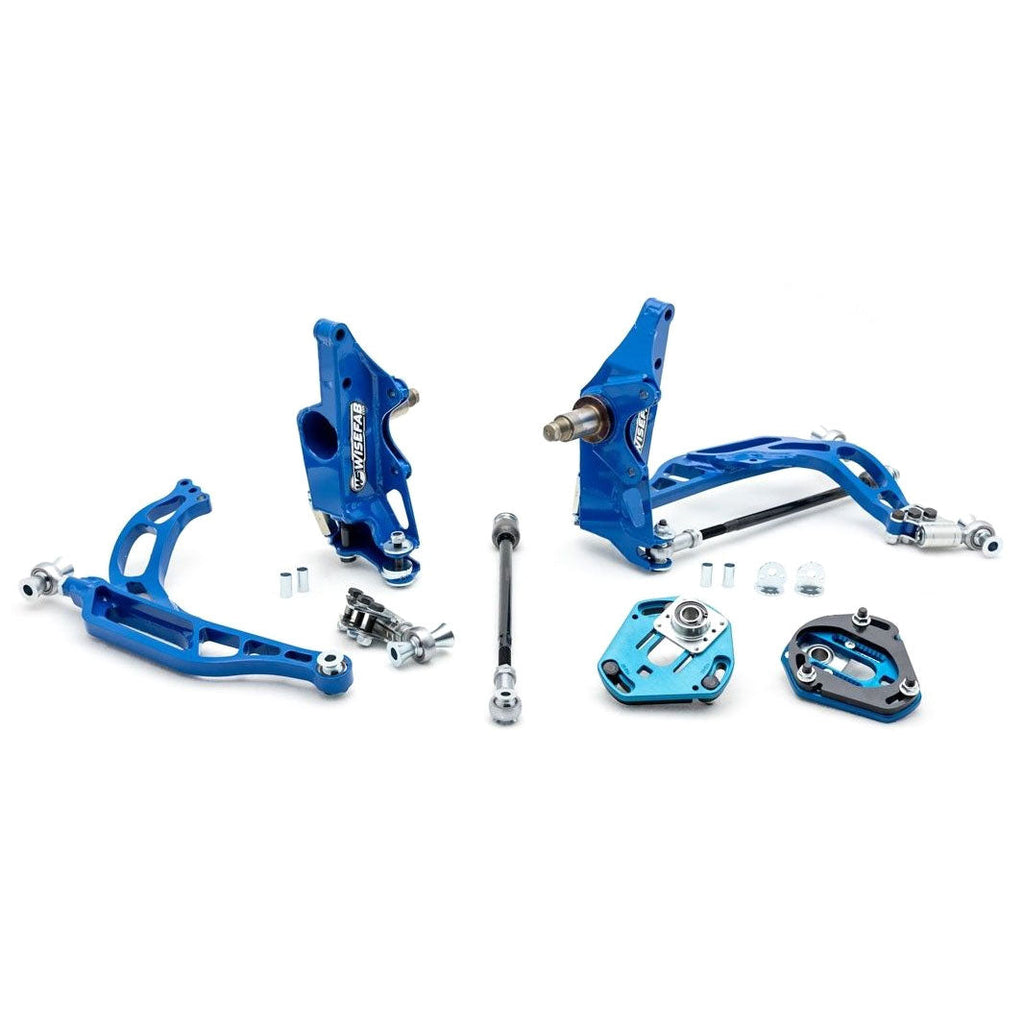

Wisefab Front Drift Angle Lock Kit for Front Rack WF1401

Wisefab “Odi Edition” V3 Nissan S-Chassis lock kit relocates the steering rack to the front of the subframe - allowing for better car control at medium to full-lock and preventing steering “bind” at max angle. Steering feel is more consistent throughout the entire sweep which allows for a more “usable” range of lock overall. Ackermann and bump-steer have also been revised for a more refined driving feel. The addition of a quick caster adjuster to the lower control arm also makes adjusting caster at the lower arm both quick and easy. The “Odi Edition” kit is truly the ultimate culmination of angle kit solution for the S-Chassis!

Here is our recommended alignment parameters:

• Toe in/out: If Ackermann is 0 or negative then toe is 2mm out. If Ackermann is positive then toe is 0
• Camber: -4 +/-0,5
• Caster: 3,5 ´+/-0,5

Notes:

• This kit is designed for use only with BMW E36/E46 steering rack.
• This kit assumes coilovers to have enough clearance.

• Depending on the type of engine and oil sump setup, additional modifications to the subframe and/or the oil sump may be necessary.

• Depending on rim width and ET, wider fenders or fender flares would be needed.

• With tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 etc) and lowered ride height the inner wheel wells need to be slightly modified.

• Recommended backspacing is 135-140mm (7“ ET45; 8“ ET35; 9“ ET25).If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used.
