Link G4X MX5Link MX5NB1X Plugin ECU

Link G4X MX5Link MX5NB1X Plugin ECU 240-4000

$2,418.95
$2,418.95
Skip to product information

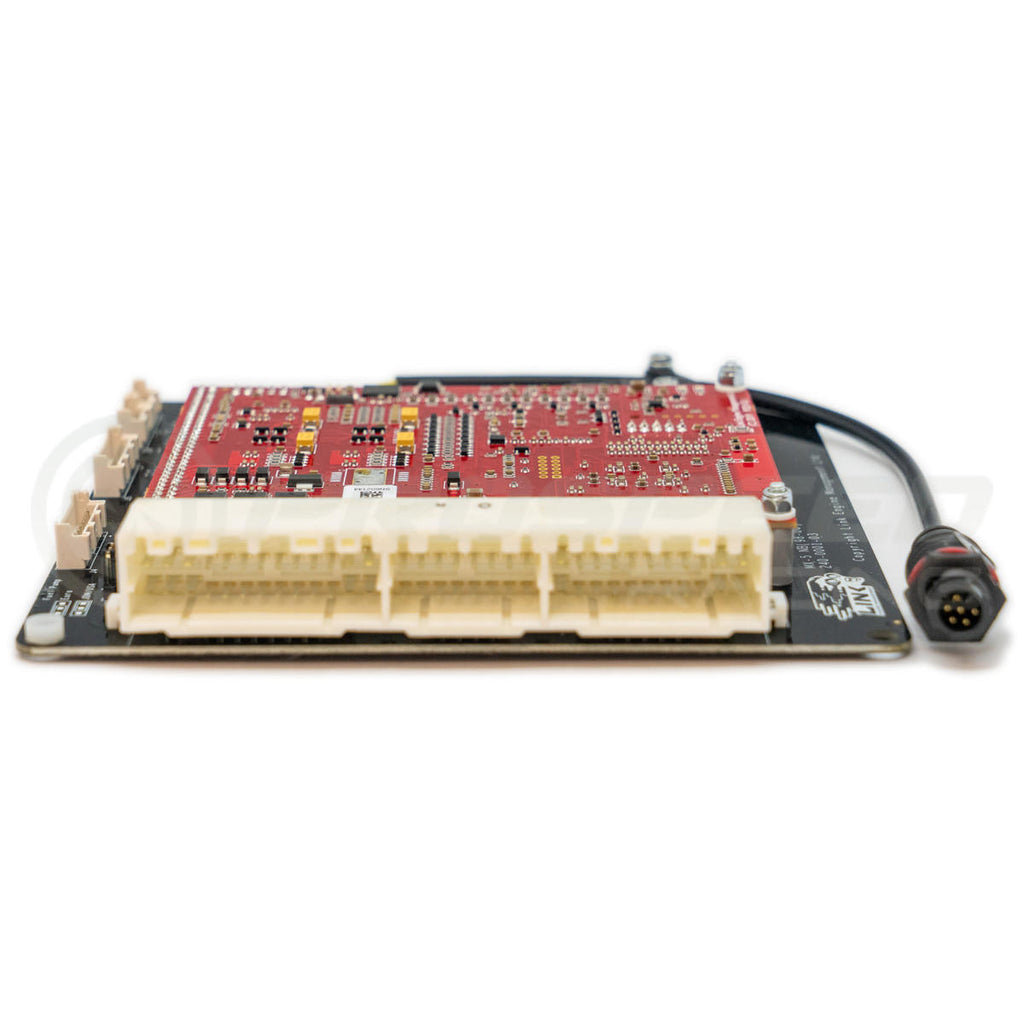

Link G4X MX5Link MX5NB1X Plugin ECU
  • Link G4X MX5Link MX5NB1X Plugin ECU
  • Link G4X MX5Link MX5NB1X Plugin ECU
Link G4X MX5Link MX5NB1X Plugin ECU 240-4000

Link G4X MX5Link MX5NB1X Plugin ECU 240-4000

$2,418.95
$2,418.95

Easy to install. Affordable. Reliable.

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the Pre-Facelift MX5 NB (MY1998-2000, 3 Plug ECU, non-VVT 1.8L Engine)

  • Please check your connector matches the header in the listed photo before purchasing.
  • This ECU works for manual transmissions only.
  • Includes onboard 7 bar MAP sensor
  • Most factory features are supported
  • Check the features tab for I/O expansion options

Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection.  Use the CANJST4 (Code 101-0198) cable for connecting CAN devices.  This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices.  The power supply is protected by a self-resetting fuse rated at 3A continuous.



G4X PlugIn Key Features (where applicable):

  • Up to 6D fuel and ignition mapping
  • Precision closed loop cam control (four cam, independent control)
  • Sequential fuel delivery
  • Digital triggering, all OEM patterns
  • OEM idle hardware supported
  • 5D boost control with three switchable tables
  • Motorsport features - antilag, launch, flat shift
  • Continuous barometric correction (on board)
  • CAN port
  • QuickTune - automated fuel tuning
  • Individual cylinder correction
  • USB tuning cable included
  • Stats recording into on-board memory
  • Gear compensations for spark, boost and fuel
  • Real time selectable dual fuel, ignition and boost maps
  • Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
  • Boost control referenced to gear, speed or throttle position
  • 512 mega bytes data logging memory
  • Staged injection
  • Knock with "windowing"



I/O Expansion Options:
The following expansion connector inputs/outputs are provided:

  • Expansion Connector 1
    • Pin 1                An Temp 4
    • Pin 2                An Temp 3
    • Pin 3                DI 10
    • Pin 4                DI 9
    • Pin 5                DI 8
    • Pin 6                DI 7
    • Pin 7                IGN 4
    • Pin 8                IGN 3
  • E-Throttle Connector
    • Pin 1                Ground (signal)
    • Pin 2                +5V out
    • Pin 3                An Volt 12
    • Pin 4                An Volt 11
    • Pin 5                An Volt 10
    • Pin 6                An Volt 9
    • Pin 7                Aux 10
    • Pin 8                Aux 9
