Radium Fuel Hanger Plumbing Kit w/Filter

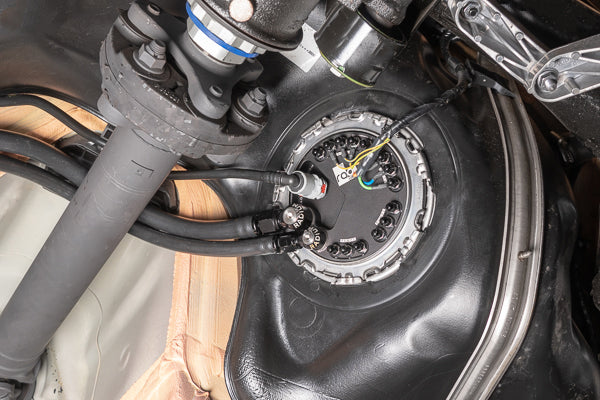

These plumbing kits include everything required to plumb the fuel system between the Radium fuel pump hanger to a port injection fuel rail. A -8AN 90 degree PuskLok hose end is included for connecting to an -8AN male port injection fuel rail fitting (not included). A -6AN 90 degree PuskLok hose end is included for connecting to an -6AN male aftermarket FPR fitting (not included). A -6AN (3/8") fuel hose runs to the fuel pump hanger return port.

The feed and/or return hose can be easily modified for installation of an in-line flex fuel sensor. Furthermore, the hoses run though billet aluminum fuel line retainers. A special retainer is provided to prevent the lines from contacting the driveshaft and exhaust when crossing over the tunnel.

An -8AN (1/2") feed hose runs from the fuel pump hanger through the provided fuel filter using a specifically designed MK5 Supra bolt-on billet mount. Depending on the kit selected (-03,-05), the fuel filter will be assembled with a choice of different elements.

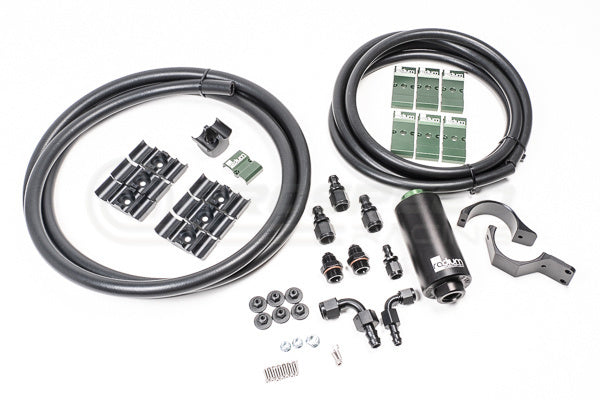

INCLUDES

• Fuel Filter (-03 Stainless or -05 Microglass)
• 8AN Fuel Filter Adapter Fittings
• Billet Aluminum MK5 Supra Filter Mount
• 8AN and 6AN PushLok Hose Ends
• 8AN Fuel Feed Hose
• 6AN Fuel Return Hose
• Fuel Line Retainers
• Stainless Steel Hardware

Vehicle Fitment:

• 2019+ Toyota GR Supra (A90/A91) (with 20-0753 port injection fuel rail and 20-0760 fuel hanger)
