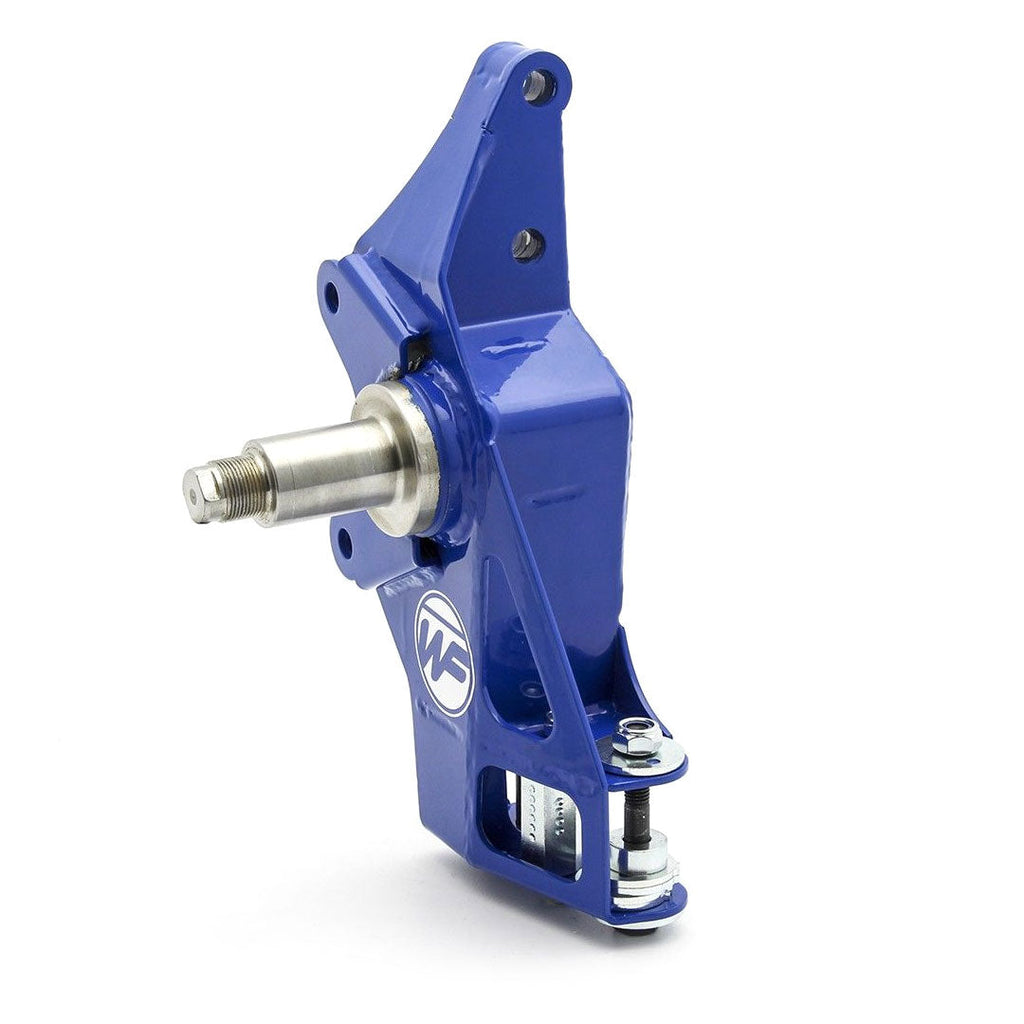

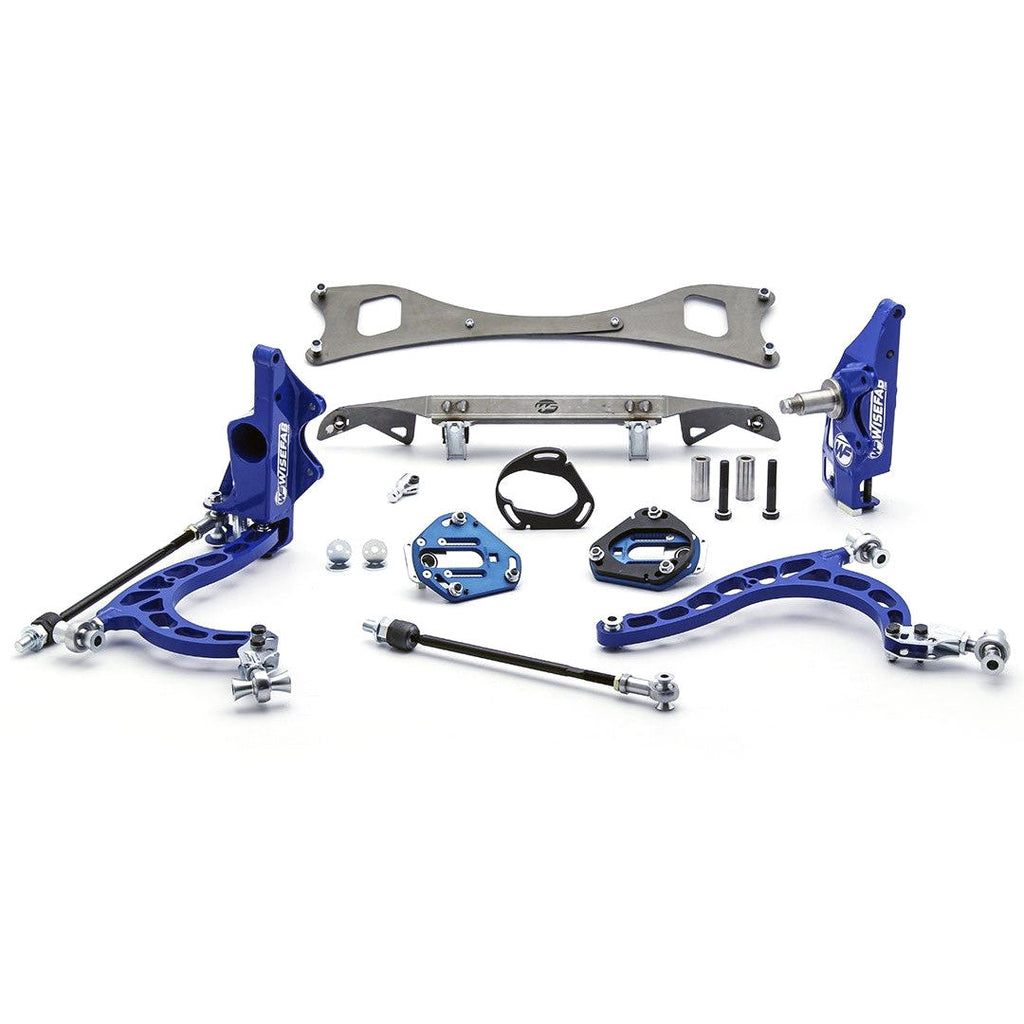

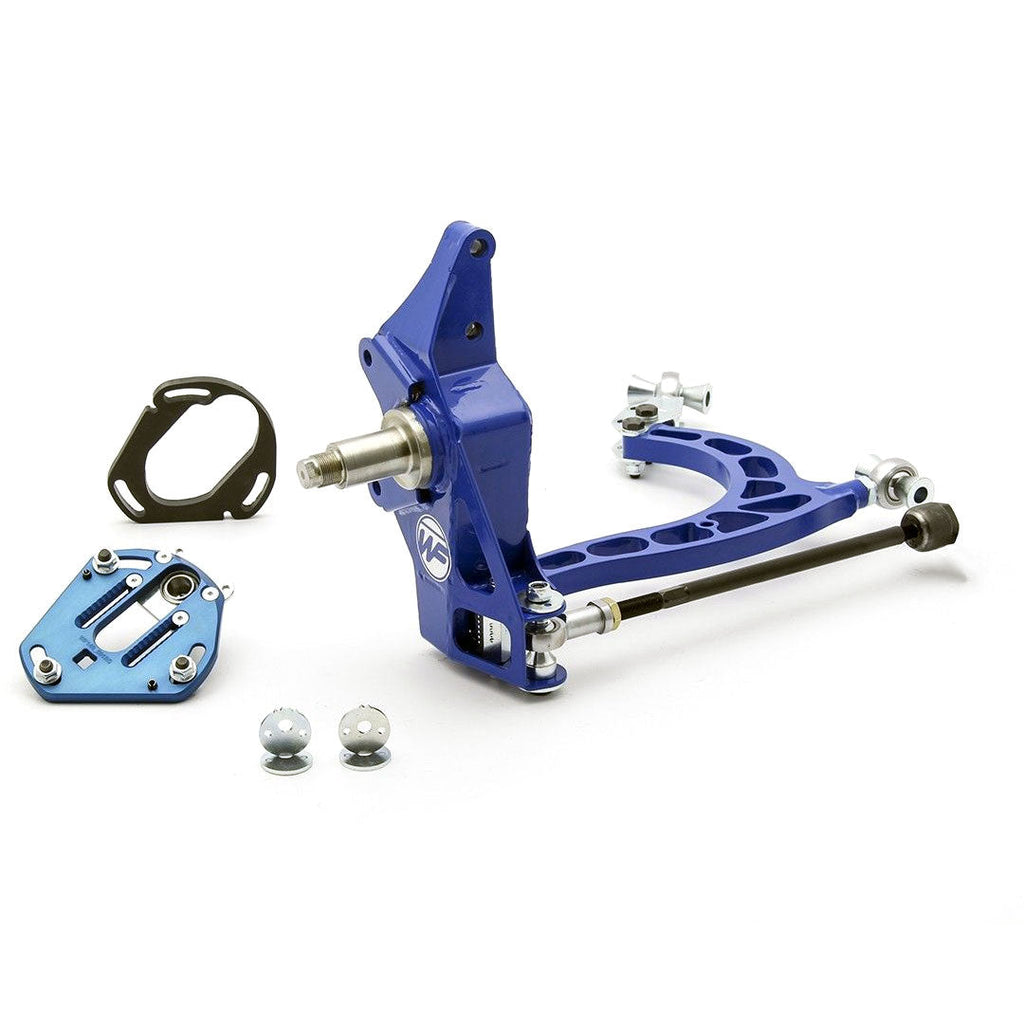

Wisefab Nissan S14/S15 angle kit has redesigned knuckle to allow more suspension travel with the trending long stroke coilovers. the new lower control arm is suitable for S13 and S14 and has more convenient adjusting. Steering rack has been relocated to improve Ackermann curve which resulted as more usable angle with better feel and precise handling. Relocating the steering rack will eliminate the need for rack offset spacers which means more rigid and precise handling. All these changes will give you the competitive edge. All the parts in the Nissan S14 angle kit are provided as spare parts.



Here is our recommended alignment parameters:

  • Toe in/out: If Ackermann is 0 or negative then toe is 2mm out. If Ackermann is positive then toe is 0
  • Camber: -4 +/-0,5
  • Caster: 3,5 ´+/-0,5



Notes:

  • S14 / S15 kit is for the 5 lug spindle, if you have 4 lug please select the Nissan S13 angle kit.
  • This kit assumes coilovers to have enough clearance.
  • Dependent on rim width and ET, wider fenders or fender flares would be needed.
  • With tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 etc) and lowered ride height the inner wheel wells need to be slightly modified.
  • Recommended backspacing is 135-140mm (7“ ET45; 8“ ET35; 9“ ET25).If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used.
